Pureflow biofloc innovations
Trickle Filters
OFFER & USE OF TRICKLE FILTERS IN AQUACULTURE

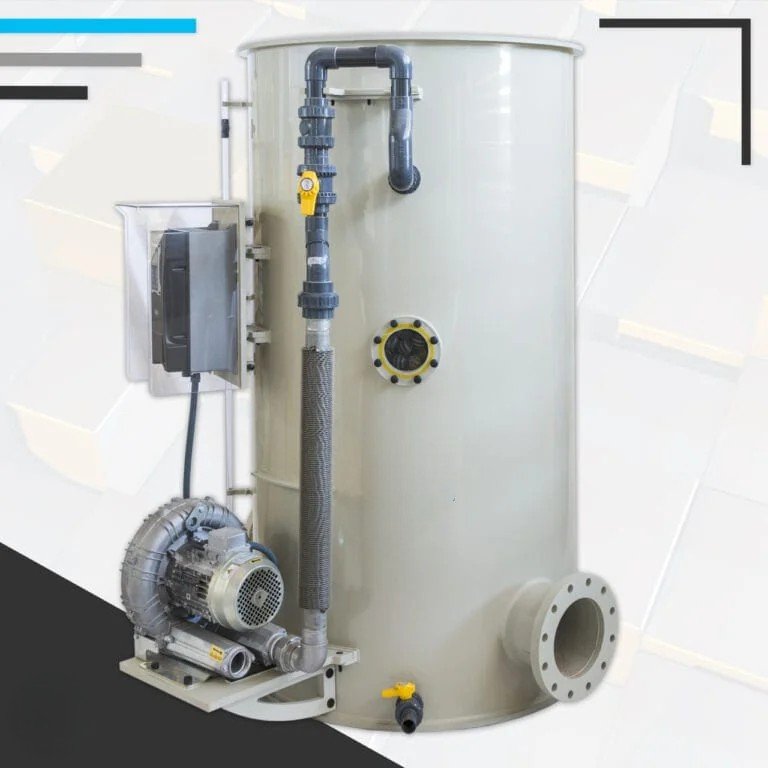

Trickle Filters in Aquaculture: Efficient Biofiltration Solutions
Trickle filters are fixed-bed, aerated biotower systems designed to convert toxic nitrogen waste in aquaculture water into non-toxic byproducts. They utilize polyethylene (PE) bioballs, offering a large surface area for microorganisms to thrive, facilitating efficient nitrification and gas exchange to restore CO₂ and O₂ levels. These filters are effective in both freshwater and marine Recirculating Aquaculture Systems (RAS), supporting Total Ammonia Nitrogen (TAN) removal rates from 10 to 1800 grams per day and accommodating biomass from 10 to 2600 kg at a 4% feeding ratio per biotower
Advantages of Trickle Filters in Aquaculture Systems
Trickle filters offer several benefits, including improved wet and dry filtration, advanced filter design, high Biochemical Oxygen Demand (BOD) treatment capacity, and enhanced gas exchange interfaces to restore CO₂ and O₂ levels in the water. They also feature minimized filter clogging, no need for periodic backwashing, a resistive and durable structure, and simplicity in design, making them easy to operate and maintain
OPERATION & ENGINEERING OF TRCIKLE FILTERS
The Trickle bio-tower Filters, receive pre-filtered biologically charged water which trickles through biomedia (PE bioballs). The media surface offers the layer onto which a biomass of microorganisms is thriving by removing the ammonia through chemical reactions. They are designed to maintain the conditions for maximum microorganism population growth and dead zone elimination. The Trickle filtration is the traditional solution for high TAN Load Removal, by maximizing the wastewater trickling surface, and by optimizing gas exchange.
All the supported components of the Ozone Generators are repairable and replaceable.
ADVANTAGES OF TRICKLE FILTERS
- Improved Wet & Dry Filtration
- Advanced Filter Design
- High BOD Treatment Capacity
- Improved Gas Exchange Interface to Restore CO2 and O2 levels in the water
- Minimized Filter Clog
- o Need of Periodic Backwashing
- Resistive & Durable Structure
- Simplicity in Design & Ease in Operation & Maintenance
Trickle Filters - SPECIFICATIONS
| wdt_ID | wdt_created_by | wdt_created_at | wdt_last_edited_by | wdt_last_edited_at | Trickle Filter | DGS-22 | DGS-62 | DGS-220 | DGS-280 | DGS-360 | DGS-600 | DGS-800 | DGS-1300 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | crisant | 01/10/2024 07:34 AM | crisant | 01/10/2024 07:34 AM | Diameter [mm] | 500 | 750 | 950 | 1250 | 1500 | 2000 | 2175 | 3000 |
| 48 | crisant | 01/10/2024 07:34 AM | crisant | 01/10/2024 07:34 AM | Height [mm] | 1561 | 1768 | 1835 | 2095 | 2509 | 2865 | 2910 | 2980 |
| 49 | crisant | 01/10/2024 07:34 AM | crisant | 01/10/2024 07:34 AM | Dry Weight [kg] | 70 | 131 | 203 | 285 | 412 | 650 | 1080 | 2082 |
| 50 | crisant | 01/10/2024 07:34 AM | crisant | 01/10/2024 07:34 AM | Operational Weight [kg] | 291 | 560 | 980 | 1420 | 1950 | 3705 | 5650 | 9240 |
| 51 | crisant | 01/10/2024 07:34 AM | crisant | 01/10/2024 07:34 AM | Inlet Size [mm] | 90 | 140 | 225 | 250 | 280 | 315 | 355 | 400 |
| 52 | crisant | 01/10/2024 07:34 AM | crisant | 01/10/2024 07:34 AM | Outlet Size [mm] | 90 | 140 | 225 | 250 | 280 | 315 | 400 | 400 |
| 53 | crisant | 01/10/2024 07:34 AM | crisant | 01/10/2024 07:34 AM | Trickle Standpipe Level [mm] | 1331 | 1518 | 1585 | 1845 | 2420 | 2179 | 2250 | 2560 |
| 54 | crisant | 01/10/2024 07:34 AM | crisant | 01/10/2024 07:34 AM | Degas Blower Inlet Size [mm] | 75 | 125 | 160 | 160 | 160 | 200 | 200 | 225 |
| 55 | crisant | 01/10/2024 07:34 AM | crisant | 01/10/2024 07:34 AM | Max Water Flow Rate [m³/h] | 22 | 62 | 220 | 280 | 360 | 600 | 800 | 1300 |
| 56 | crisant | 01/10/2024 07:34 AM | crisant | 01/10/2024 07:34 AM | Recomended 2 Minute Retantion Water Flow [m³/h] | 72 | 213 | 387 | 60 | 135 | 2427 | 330 | 6147 |
| 57 | crisant | 01/10/2024 07:34 AM | crisant | 01/10/2024 07:34 AM | Max BIO-500 Media [m3] | 018 | 05 | 09 | 173 | 3 | 52 | 75 | 128 |
| 58 | crisant | 01/10/2024 07:34 AM | crisant | 01/10/2024 07:34 AM | Body Material | PP | PP | PP | PP | PP | PP | PP | PP |
| Trickle Filter | DGS-22 | DGS-62 | DGS-220 | DGS-280 | DGS-360 | DGS-600 | DGS-800 | DGS-1300 |
| wdt_ID | wdt_created_by | wdt_created_at | wdt_last_edited_by | wdt_last_edited_at | Trickle Filter (Dearation Tower/Degass) Optional Features | DGS-22 | DGS-62 | DGS-220 | DGS-280 | DGS-360 | DGS-600 | DGS-800 | DGS-1300 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | crisant | 01/10/2024 07:36 AM | crisant | 01/10/2024 07:36 AM | Overflow Switch | optional | optional | optional | optional | optional | optional | optional | optional |
| 48 | crisant | 01/10/2024 07:36 AM | crisant | 01/10/2024 07:36 AM | Air Fan | optional | optional | optional | optional | optional | optional | optional | optional |
| 49 | crisant | 01/10/2024 07:36 AM | crisant | 01/10/2024 07:36 AM | Air/Water Ratio On 2 Min Retantion Time | 5//1 | 5//1 | 5//1 | 5//1 | 5//1 | 5//1 | 5//1 | 5//1 |
| 50 | crisant | 01/10/2024 07:36 AM | crisant | 01/10/2024 07:36 AM | Biomedia BIO-100 | optional | optional | optional | optional | optional | optional | optional | optional |
| 51 | crisant | 01/10/2024 07:36 AM | crisant | 01/10/2024 07:36 AM | Biomedia BIO-500 | optional | optional | optional | optional | optional | optional | optional | optional |
| Trickle Filter (Dearation Tower/Degass) Optional Features | DGS-22 | DGS-62 | DGS-220 | DGS-280 | DGS-360 | DGS-600 | DGS-800 | DGS-1300 |
Preserves the right to update anytime the listed prices (if any). Every effort has been made so that the above specs are accurate. However please contact our Sales Department for up to date technical data, electrical specs according to your regional requirements and current Ex-Works pricelist. The listed prices are for the basic equipment and do not include any optional components.
