Ozone Destruct Units
Ozone destruct units treat residual ozone in off-gas from a designed ozone process. Pureflow Bio supplies off-gas treatment equipment from India for aquaculture and aquarium installations.
What are Ozone Destruct Units?
An ozone destruct unit treats ozone-bearing off-gas using the specified destruction medium and operating arrangement before the gas is discharged to its agreed destination.
Ozone Destruct Units applications
Ozonated RAS systems
Best for off-gas handling from a separately designed contact stage.
Aquarium life support
Best for coordinating gas treatment with ventilation and monitoring.
Hatchery treatment installations
Best for a defined gas duty with accessible servicing.
How Ozone Destruct Units work
Collect the off-gas
Route the specified ozone-bearing gas from the contact system.
Apply the selected destruction method
Pass gas through the medium or treatment arrangement stated in the supplied design.
Verify the outlet
Monitor the agreed outlet and operating conditions before discharge through the planned route.
Ozone Destruct Units features and benefits
Dedicated gas treatment
Separates off-gas duty from the water-treatment equipment.
Duty-specific selection
Accounts for inlet ozone concentration and gas volume.
Moisture review
Helps establish condensate protection for the selected treatment method.
Service access
Allows inspection or replacement of the supplied medium and components.
Ozone Destruct Units gallery
Explore equipment views and configuration examples. Images do not define the complete scope of supply or document a verified customer installation.

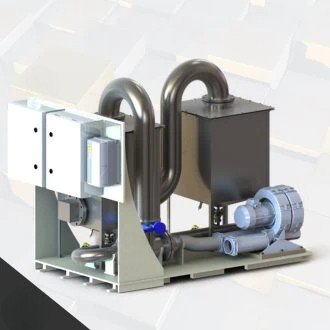

Ozone Destruct Units — assembly view
Ozone Destruct Units — configuration example
Ozone Destruct Units models and specifications
Ozone Destruct Units model schedule
| Model | Body material | Body diameter (mm) | Width (mm) | Depth (mm) | Maximum height (unit to confirm) | Drain outlet (unit to confirm) | Inlet (mm) | Outlet (mm) | Carbon media quantity (unit to confirm) | Listed gas inlet concentration (unit to confirm) | Listed gas outlet concentration (unit to confirm) | Electrical supply listing (V) | Enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ODU-10 | Polypropylene (PP) | 300 | 475 | 425 | 990 | 25 | 50 | 63 | 25 | 1 | 0,0.8 | 230 / 440 | Enquire about ODU-10 |
| ODU-30 | Polypropylene (PP) | 400 | 675 | 525 | 1250 | 25 | 63 | 90 | 35 | 1 | 0,0.8 | 230 / 440 | Enquire about ODU-30 |
| ODU-60 | Polypropylene (PP) | 500 | 765 | 610 | 1350 | 50 | 75 | 110 | 55 | 1 | 0,0.8 | 230 / 440 | Enquire about ODU-60 |
| ODU-100 | Polypropylene (PP) | 600 | 830 | 720 | 1420 | 50 | 90 | 110 | 100 | 1 | 0,0.8 | 230 / 440 | Enquire about ODU-100 |
| ODU-200 | Polypropylene (PP) | 700 | 925 | 810 | 1520 | 50 | 110 | 160 | 190 | 1 | 0,0.8 | 230 / 440 | Enquire about ODU-200 |
The ODU model schedule lists PP bodies and the dimensions shown. The source does not give units for maximum height, drain size, carbon quantity or gas concentration, and prints the outlet concentration as “0,0.8”. Confirm these items, electrical phase, frequency, input power and the verified ozone-removal duty before ordering; the concentration figures are not a performance guarantee.
Configuration and supply details
Confirm materials, connection standard, dimensions, electrical requirements and included components for the selected equipment. The quotation defines current pricing and the approved scope.
Optional components
- Destruction method and auxiliary equipment to model-specific quotation
Options are supplied only when included in the agreed quotation.
How to select Ozone Destruct Units
Off-gas ozone destruction and dissolved-ozone residual control are separate duties.
- Maximum gas flow
- Inlet ozone concentration
- Temperature and humidity
- Allowable pressure drop
- Required outlet concentration and monitoring
Build your ozone destruct units enquiry brief
Record your design requirements for review. This tool does not calculate an unverified treatment capacity or automatically approve a model.
Ozone Destruct Units installation and maintenance
Installation and integration
Confirm condensate management, gas routing and allowable backpressure. Coordinate the unit with the contact chamber, ventilation and the supplied alarm strategy.
Routine maintenance
Follow the supplied medium or catalyst inspection schedule. Check condensate routes, seals and monitoring instruments before returning the unit to service.
Warranty, dispatch and installation
One-year equipment warranty
Confirm coverage and operating requirements in the quotation.
Dispatch within 15 working days
Dispatch follows order confirmation. Transport and site delivery time are additional.
Made in India
Manufactured by Pureflow Bio in Mysuru, Karnataka. Installation, commissioning and service across India are agreed for your project.
For complete turnkey projects, confirm the project schedule, utilities, site preparation, installation and commissioning responsibilities separately.
Request a Ozone Destruct Units quote
Share your application, preferred model and site requirements. Pureflow Bio will confirm the selected configuration and scope in your quotation.
Ozone Destruct Units FAQs
What does an ozone destruct unit do?
It takes the leftover ozone gas vented from a skimmer or contact chamber and breaks it down into ordinary oxygen before it reaches the air. Without one, ozone builds up in the plant room and becomes a health hazard for staff.
Do I really need one if my system is small?
If any ozone gas leaves your skimmer or contact chamber, yes. Even small amounts irritate the lungs and eyes in a closed room, and you can stop noticing the smell after a few minutes. A destruct unit is cheap insurance.
How does it work?
Our units pass the off-gas through activated carbon in a PP body. The carbon reacts with the ozone and converts it to oxygen. The carbon is used up slowly over time and needs topping up or replacing.
How often does the carbon need changing?
It depends on how much ozone reaches the unit and how humid the gas is. Wet off-gas wears carbon out faster. Check it regularly with an ozone test at the outlet and replace the carbon when ozone starts to come through.
How do I size an ozone destruct unit?
We size it by the maximum gas flow coming off your skimmer or chamber, the ozone concentration in that gas and how humid it is. Send us the generator output and how the ozone is being dissolved, and we'll recommend a model.
Plan your complete aquaculture or aquarium system
Connect ozone destruct units to the wider treatment process
Discuss equipment integration, utilities and a coordinated project scope with Pureflow Bio.
